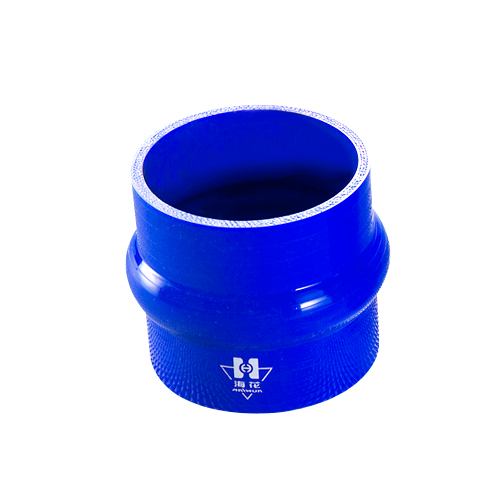

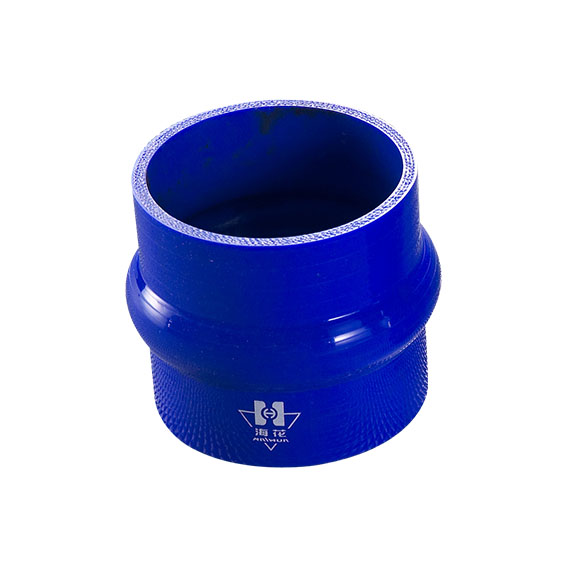

Hump

Application:

Allows for slight flexibility and expansion in tight or offset applications.


Product info

Features & Benefits:

-Standard Material: Silicone reinfored with Polyester Fabric

-Standard Color: Blue/Red/Black

-Max Temperature: 220℃(428°F)

-Pressure: 0.3-0.9Mpa

-Size tolerance: +/-0.5mm

Specification

Hump

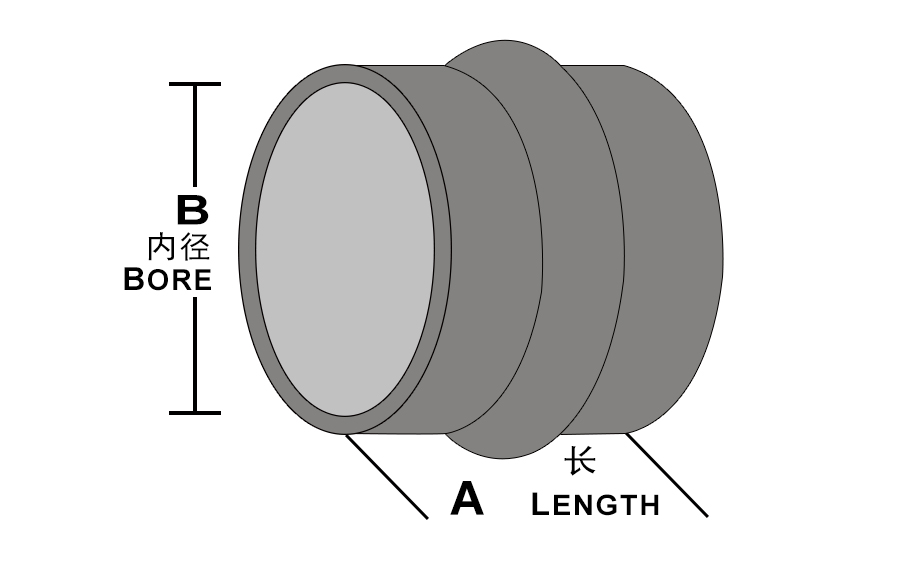

Part Code Bore mm Bore '' Wall Size PLY
SH50 51 2'' 4mm or 5mm 3 or 4
SH60 54 2 3/8'' 4mm or 5mm 3 or 4
SH63 57 2 1/2'' 4mm or 5mm 3 or 4
SH70 60 2 3/4'' 4mm or 5mm 3 or 4
SH76 63 3'' 4mm or 5mm 3 or 4
SH80 65 3 1/8'' 4mm or 5mm 3 or 4
SH90 68 3 1/2'' 4mm or 5mm 3 or 4
SH100 70 4'' 4mm or 5mm 3 or 4
