HAIHUA

Product info

All our hoses are handcrafted in our factory in China.

Our team of highly skilled technicians take great pride in their work and are committed to providing you with a level of quality unmatched by any other hose manufacturer.
We continuously monitor and analyze our performance through ISO9002, ISO9001:2000, QS9000, FIA16949 certified quality management systems and are committed to the principle of continuous improvement.

Application:

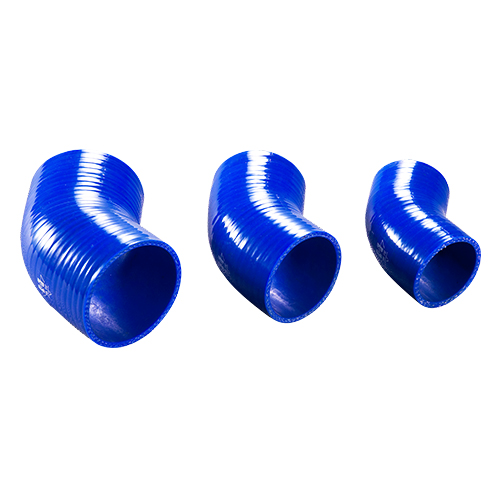

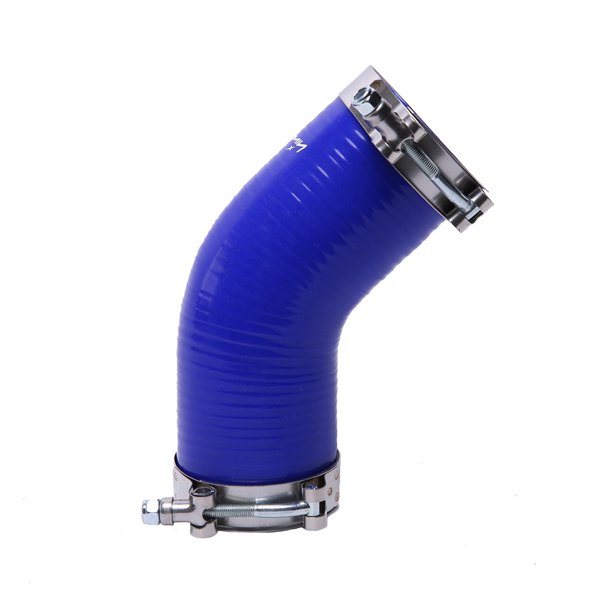

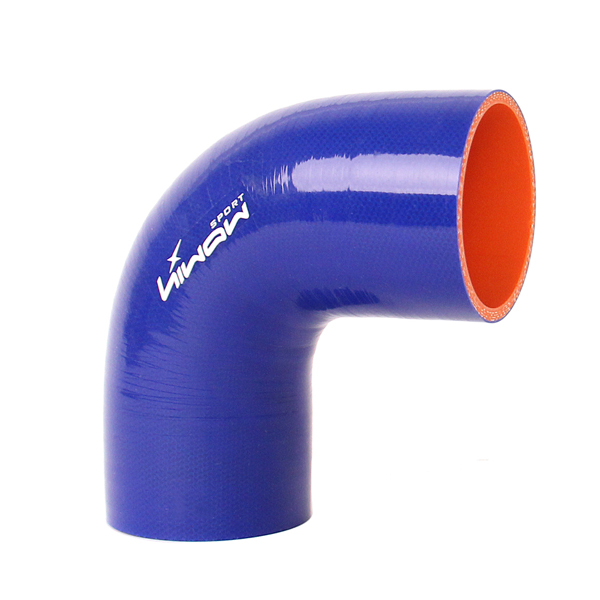

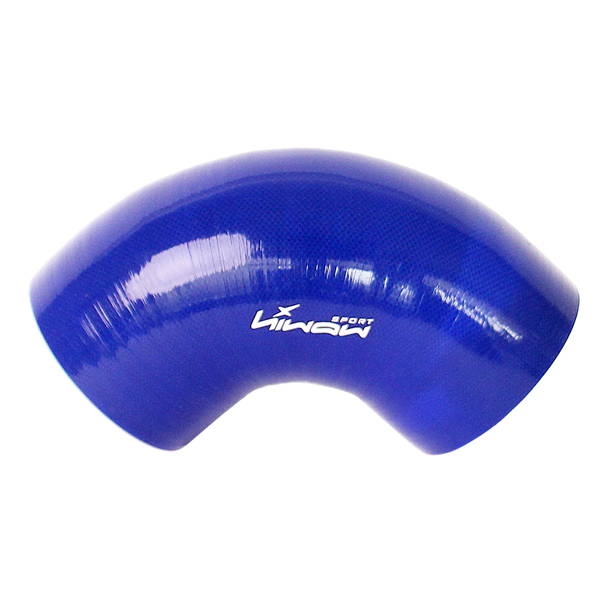

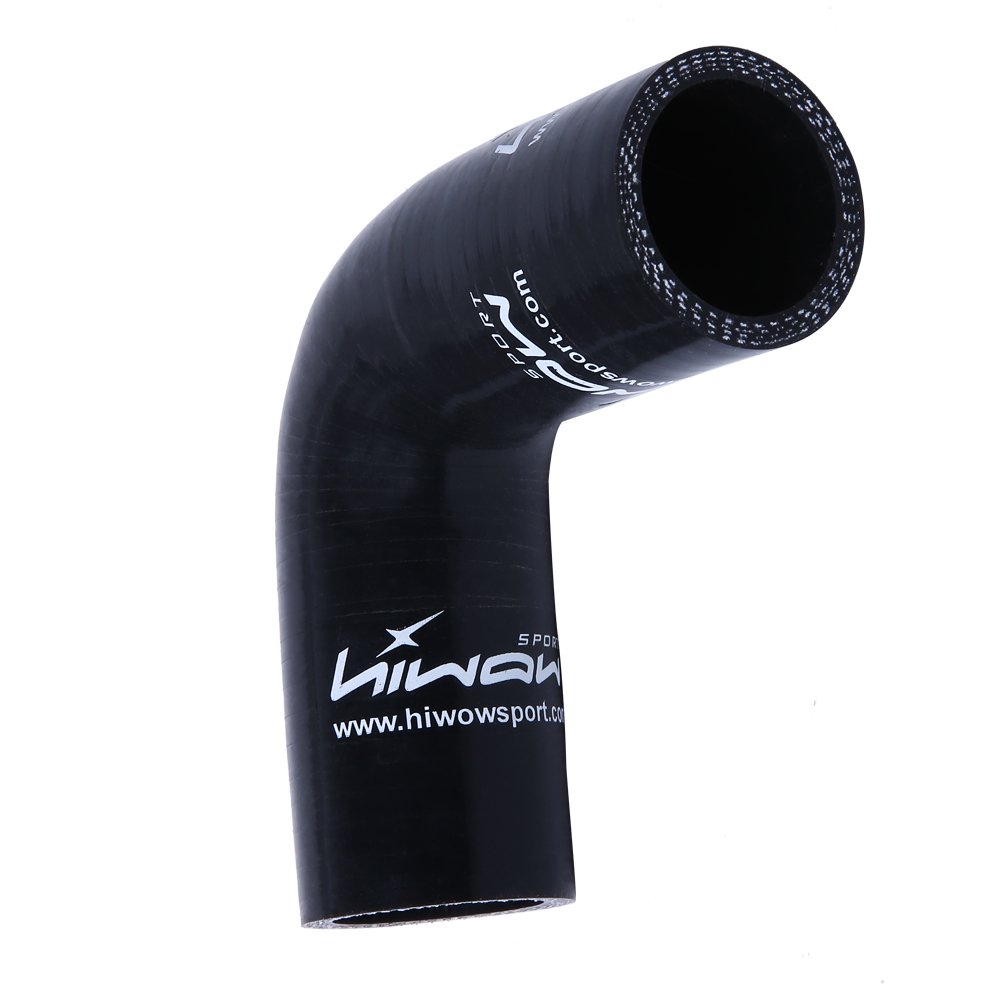

Are produced to 45,90,135 degree as standard.

Features & Benefits:

-Standard Material: Silicone reinfored with Polyester Fabric

-Standard Color: Blue/Red/Black

-Max Temperature: 220℃(428°F)

-Pressure: 0.3-0.9Mpa

-Size tolerance: +/-0.5mm

Specification

Standard Elbow
Part Code E45	Part Code E90	Part Code E135	Bore mm	Bore ''	Wall Size	PLY
HS45E6.5	HS90E6.5	HS135E6.5	6.5	1/4''	4mm or 5mm	3 or 4
HS45E8	HS90E8	HS135E8	8	5/16''	4mm or 5mm	3 or 4
HS45E9.5	HS90E9.5	HS135E9.5	9.5	3/8''	4mm or 5mm	3 or 4
HS45E11	HS90E11	HS135E11	11	7/16''	4mm or 5mm	3 or 4
HS45E13	HS90E13	HS135E13	12	1/2''	4mm or 5mm	3 or 4
HS45E16	HS90E16	HS135E16	16	5/8''	4mm or 5mm	3 or 4
HS45E19	HS90E19	HS135E19	19	3/4''	4mm or 5mm	3 or 4
HS45E22	HS90E22	HS135E22	22	7/8''	4mm or 5mm	3 or 4
HS45E25	HS90E25	HS135E25	25	1''	4mm or 5mm	3 or 4
HS45E28	HS90E28	HS135E28	28	1 1/8''	4mm or 5mm	3 or 4
HS45E30	HS90E30	HS135E30	30	1 3/16''	4mm or 5mm	3 or 4
HS45E32	HS90E32	HS135E32	32	1 1/4''	4mm or 5mm	3 or 4
HS45E35	HS90E35	HS135E35	35	1 3/8''	4mm or 5mm	3 or 4
HS45E38	HS90E38	HS135E38	38	1 1/2''	4mm or 5mm	3 or 4
HS45E41	HS90E41	HS135E41	41	1 5/8''	4mm or 5mm	3 or 4
HS45E45	HS90E45	HS135E45	45	1 3/4''	4mm or 5mm	3 or 4
HS45E48	HS90E48	HS135E48	48	1 7/8''	4mm or 5mm	3 or 4
HS45E51	HS90E51	HS135E51	51	2''	4mm or 5mm	3 or 4
HS45E54	HS90E54	HS135E54	54	2 1/8''	4mm or 5mm	3 or 4
HS45E57	HS90E57	HS135E57	57	2 1/4''	4mm or 5mm	3 or 4
HS45E60	HS90E60	HS135E60	60	2 3/8''	4mm or 5mm	3 or 4
HS45E63	HS90E63	HS135E63	63	2 1/2''	4mm or 5mm	3 or 4
HS45E65	HS90E65	HS135E65	65	2 9/16''	4mm or 5mm	3 or 4
HS45E68	HS90E68	HS135E68	68	2 11/16''	4mm or 5mm	3 or 4
HS45E70	HS90E70	HS135E70	70	2 3/4''	4mm or 5mm	3 or 4
HS45E76	HS90E76	HS135E76	76	3''	4mm or 5mm	3 or 4
HS45E80	HS90E80	HS135E80	80	3 1/8''	4mm or 5mm	3 or 4
HS45E83	HS90E83	HS135E83	83	3 1/4''	4mm or 5mm	3 or 4
HS45E89	HS90E89	HS135E89	89	3 1/2''	4mm or 5mm	3 or 4
HS45E102	HS90E102	HS135E102	102	4''	4mm or 5mm	3 or 4
