Our silicone connection hoses combine style and performance, making them ideal for most air and water applications.
All our hoses are handcrafted in our factory in China.
Our team of highly skilled technicians take great pride in their work and are committed to providing you with a level of quality unmatched by any other hose manufacturer.
We continuously monitor and analyze our performance through ISO9002, ISO9001:2000, QS9000, FIA16949 certified quality management systems and are committed to the principle of continuous improvement.

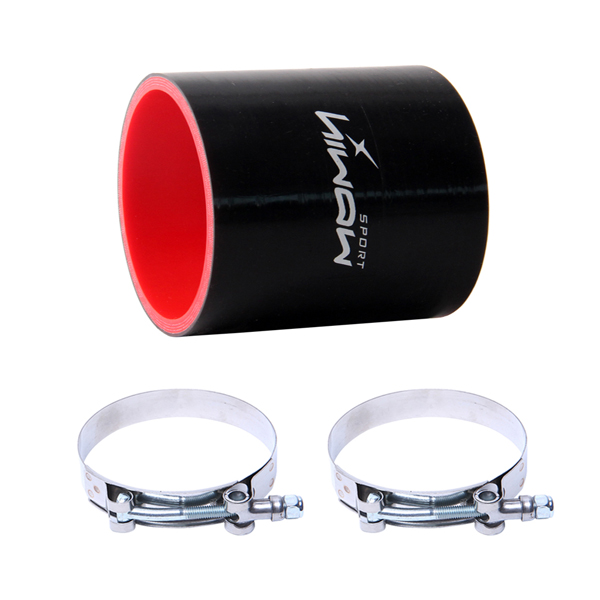

The Standard length of our UTV coupler is 3‘’, provide variable bore sizes to suit different applications.
● 100% silicone construction
● Heat-resistant embedded fibers
● High heat and pressure tolerances
Features & Benefits:
-Standard Material: Silicone reinfored with Polyester Fabric
-Standard Color: Blue/Red/Black
-Max Temperature: 220℃(428°F)
-Size tolerance: +/-0.5mm
|Part Code||Bore mm||Bore ''||Wall Size||PLY|
|SC51||51||2''||4mm or 5mm||3 or 4|
|SC54||54||2 1/8''||4mm or 5mm||3 or 4|
|SC57||57||2 1/4''||4mm or 5mm||3 or 4|
|SC60||60||2 3/8''||4mm or 5mm||3 or 4|
|SC63||63||2 1/2''||4mm or 5mm||3 or 4|
|SC65||65||2 9/16''||4mm or 5mm||3 or 4|
|SC68||68||2 11/16''||4mm or 5mm||3 or 4|
|SC70||70||2 3/4''||4mm or 5mm||3 or 4|
|SC76||76||3''||4mm or 5mm||3 or 4|
|SC80||80||3 1/8''||4mm or 5mm||3 or 4|
|SC83||83||3 1/4''||4mm or 5mm||3 or 4|
|SC89||89||3 1/2''||4mm or 5mm||3 or 4|
|SC102||102||4''||4mm or 5mm||3 or 4|
