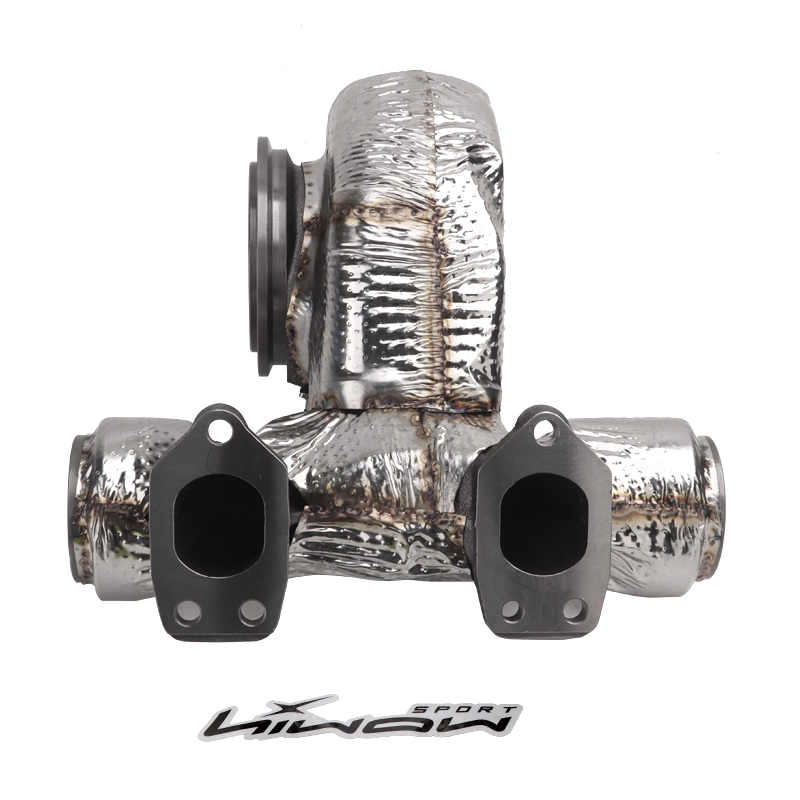

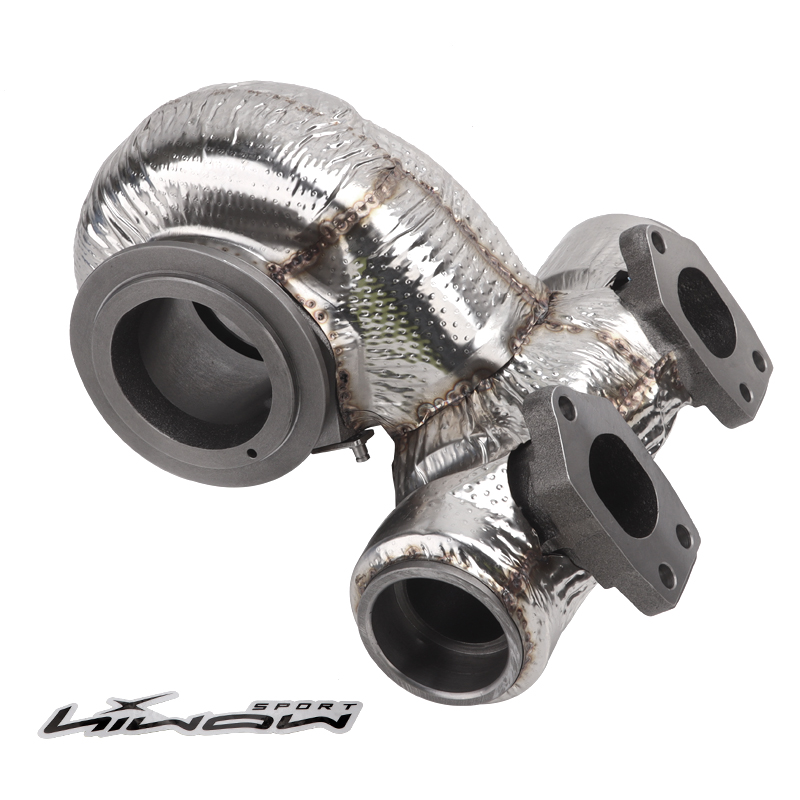

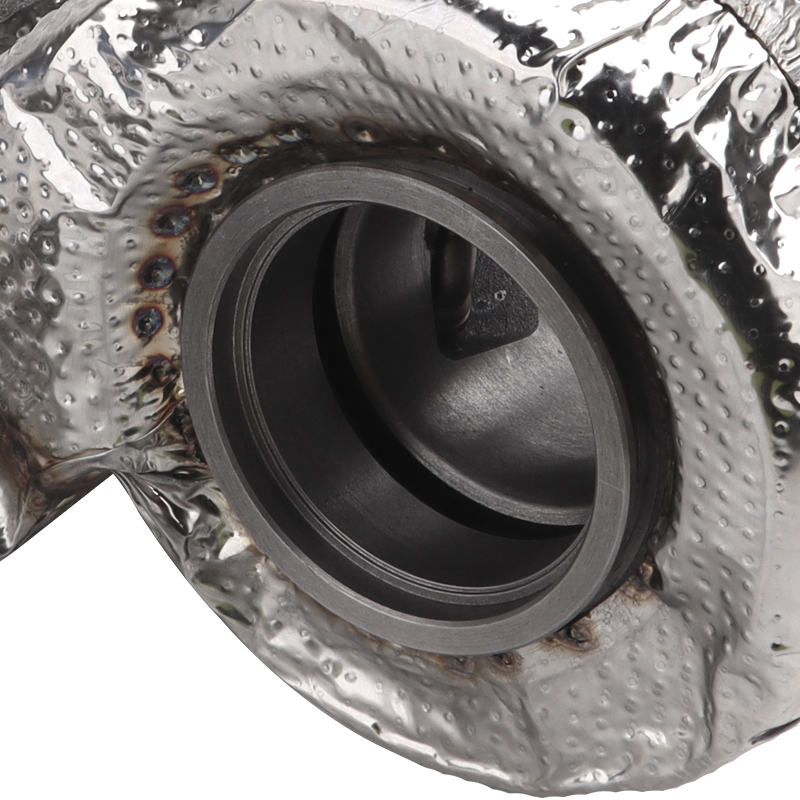

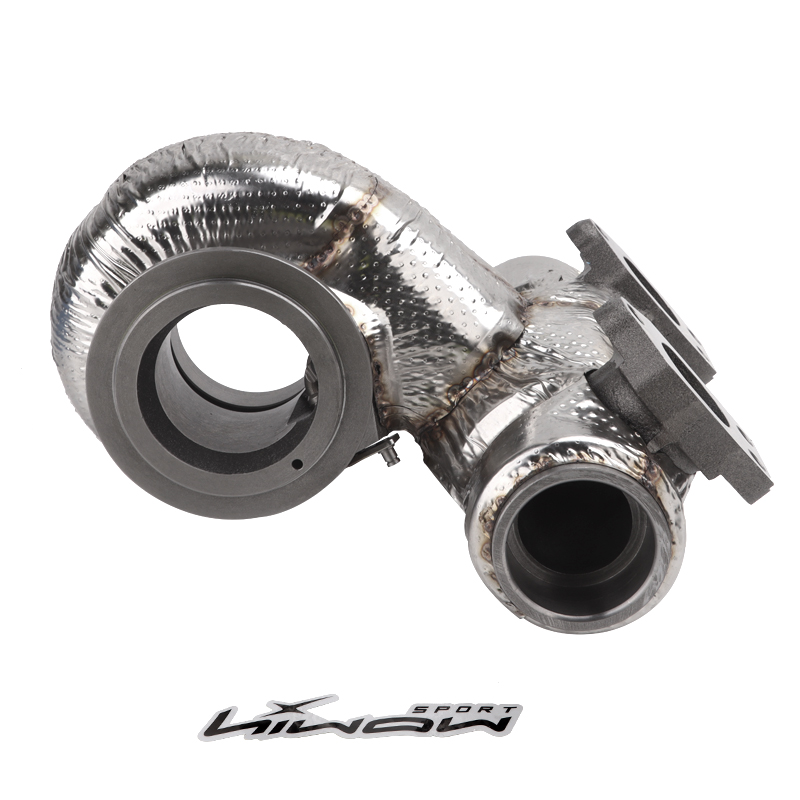

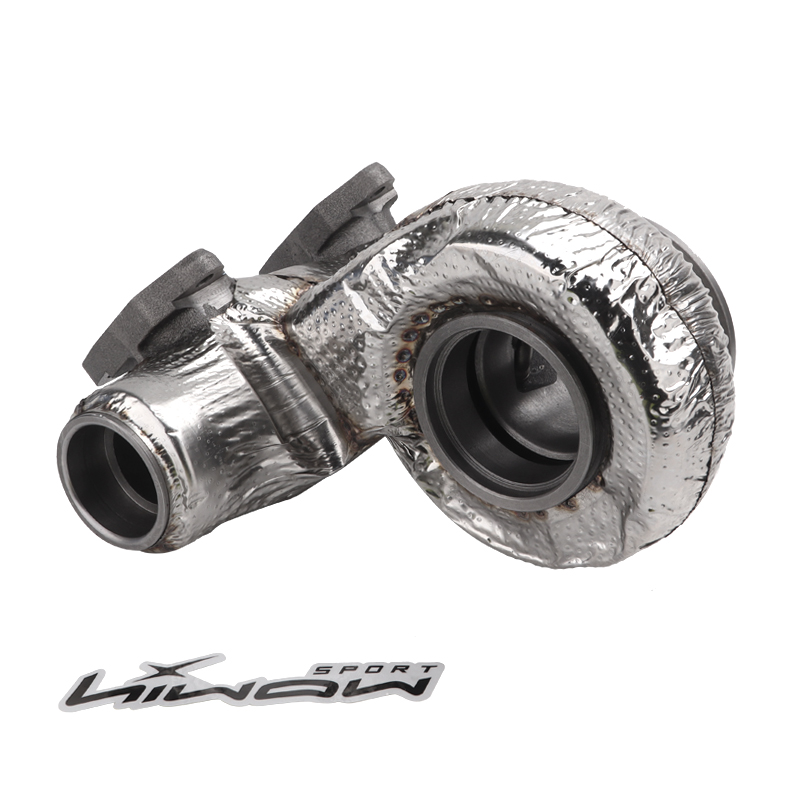

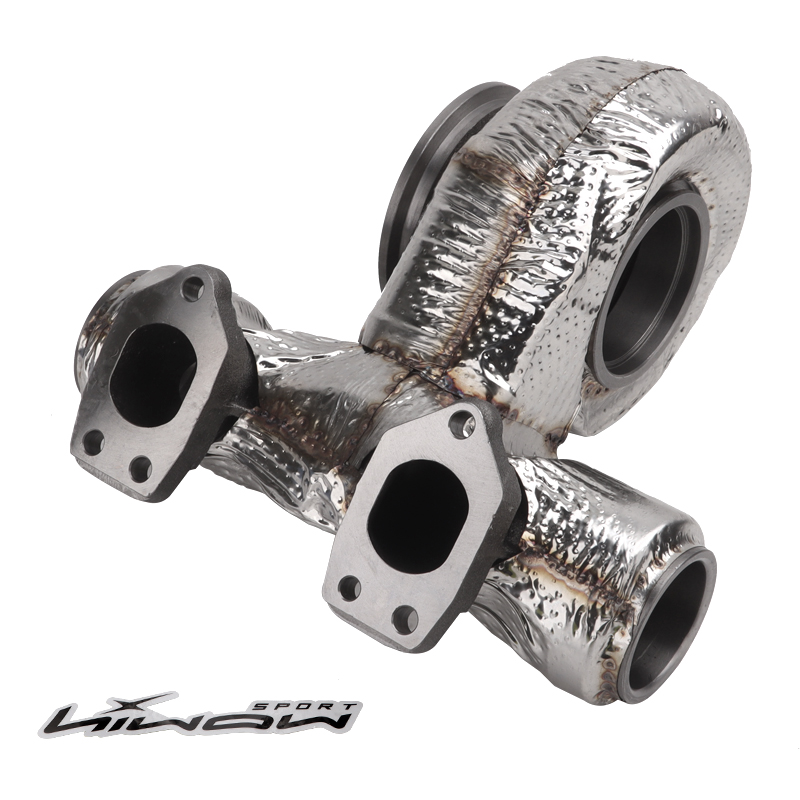

Turbocharger heat sheild
How much temperature the heat shield can withstand?
It works under the temperature of 1000 C,about3000 degree F.
How’s this metal heat sheild made?
First cut the stainless steel sheet and mold it’s shape.
Then use a five-axis laser cutting machine for trimming.

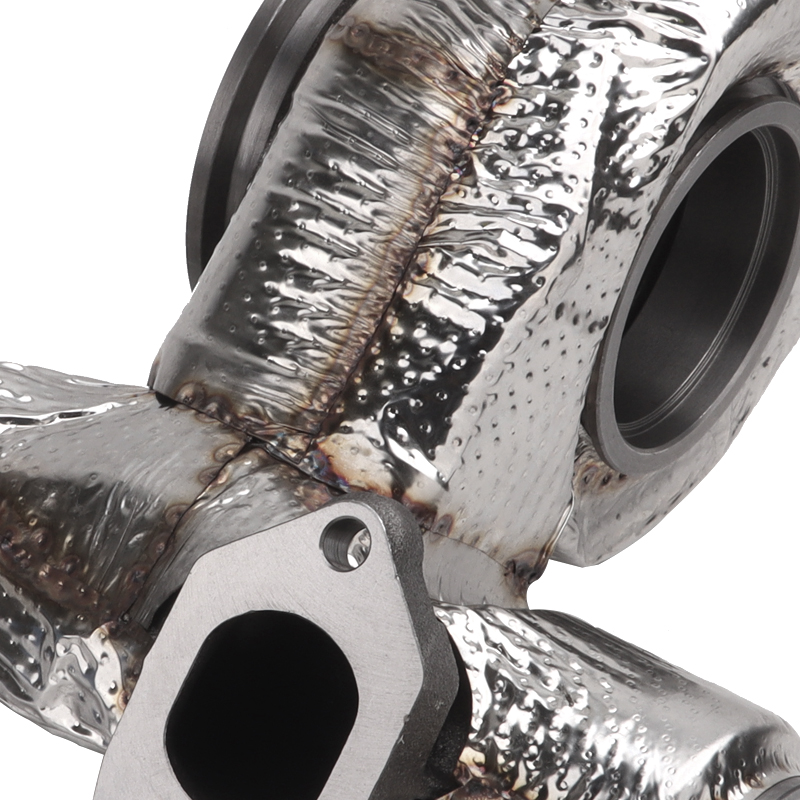

Welding the sheet into a whole over the heat surface.
What is the main material for high temperature resistance?
Our stainless steel sheet is 2.5-3mm thick.
Inter layer is DBW power mat (former know as sinamat), which is 5mm-10mm according to environment temperature.
Both material’s transformation temperature is over 1000 C°
Does this stainless steel heat sheild needs tooling fee?
Yes, this heat sheild is first molded from sheet metal. The molding tooling needs about $5000-$10000 according to the product size.
How much time does it take for the mold tooling?
Usually it needs about 25 days.
How to start the project?
Please take a picture of your item with a tap measure and include the height, Width, and length of the piece. Including a picture with the runner diameter also helps with ensuring the accuracy of the estimate.
And we will give you a solution and estimate the molding charge.
The exhaust pipe, manifold and turbocharger are all heavy items? Can you purchase for us directly?
Yes, We can also purchase the exhaust pipe or turbocharger for you if you want. If you already have a supplier in China you can asked them to send us the products directly.
